Saunum AirIQ Wi-Fi Programmable Multi-Function Wi-Fi Sauna Heater Control

With a Saunum AirIQ control unit, control of the Saunum Air electric sauna heater is easy and convenient. Three programmable sauna types let you heat the sauna with just a few taps on the screen. The AirIQ allows you to activate a tailored sauna profile and have your custom sauna ready at the time you specify on your mobile device.  This improves your sauna experience and reduces energy consumption.

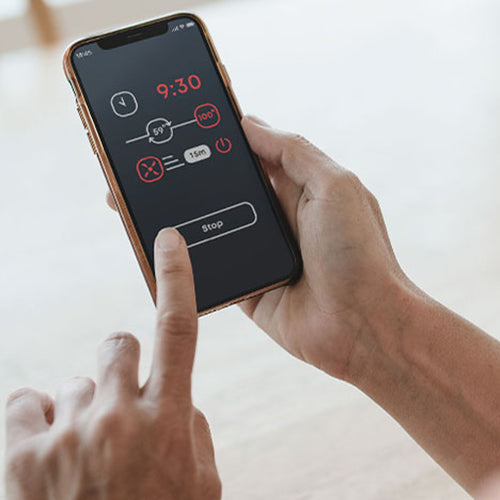

With the Saunum AirIQ Wi-Fi, you can control your sauna from anywhere, at any time. Simply pair the Saunum AirIQ app with the Saunum AirIQ Wi-Fi that is connected to a Wi-Fi network. Sauna notifications are displayed on the user's mobile device. The AirIQ is UL listed for safety.

• Easily control the Saunum heater and climate device with just a few taps on the screen.
  Temperature selection ranges from 104 °F – 194°F (40°C - 90°C).
  Allows you to set the operating time of the heater: up to 1 hour in a private sauna, up to 6 hours in a public sauna.
  Allows you to select up to 3 Preset Sauna settings: (selectable temperature, time, climate device speed)
  Classic Nordic Steam Sauna
  for temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
  Humid Steam-rich Sauna
  for temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
  Mild, Relaxing Sauna
  for temperatures from 104 °F – 131 °F (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
  AirIQ WiFi allows for sauna session scheduling for a specific day, time, and sauna type for the week.
  Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play.
  ModBus integration for smart home connection
  Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app.
  Sauna is Ready
  Heating Status
  Door is Open
  Overheating protection applied.
  Multi-Language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian.
  Outside Sauna room installation
  Screen lock
  Child Safety Lock
  Temperature Sensor
  Door Sensor

• Soft-Touch Display Panel (Wi-Fi App-Based Updates & Operation)
  Wall Mounting Plate & Fasteners
  Power Unit
  Installation & Operation Manual
  Limited Warranty

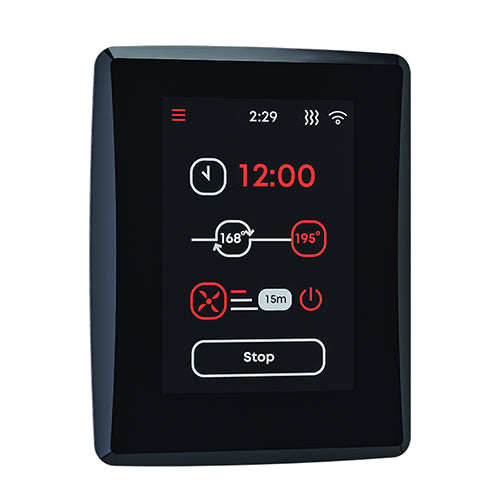

Display Panel
Model
AirIQ Wi-Fi
Certification/Global Safety Rating
UL (Underwriters Laboratories)
Type
Digital, Soft-Touch
Response
Tactile with Haptic Feedback Technology
Language Selection
16-Languages
Wi-Fi Capability
Wi-Fi, App-Based Updates & Operation
Notifications
Sauna is Ready, Heater Status, Open Door, and Overheating Protection
Safety Features
Admin, Screen Lock, Door Sensor, and Overheat Protection
Color
Nordic Black
Heat Equalizing Control
3-Speed Adjustability
Depth
.8" (20.32 mm)
Width
3.3" (83.82 mm)
Height
4.1" (104.14 mm)
IP Rating
IP20
Minimum Temperature Setting
104-Degrees Fahrenheit (40-Celcius)
Maximum Temperature Setting
194-Degrees Fahrenheit (90-Celcius)
Duration Timer
1 - 6 Hours
Display Panel Cable (included with heater)
4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm)
Door Sensor & Cable Assembly (included with heater)
2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm)
Door Sensor Probe
1" Long and .24" Diameter (25 x 6 mm)
Operating Temperature Range
-4 - 145-Degrees Fahrenheit (-20 - 62 Celsius)
Programmability
Weekly Scheduling with Three Programmable Sessions
Temperature Settings
Fahrenheit or Celsius
Region Settings
North American and European Versions
Room Temperature Sensor (included with heater)
Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)
Power Unit
Certification/Global Safety Rating
UL (Underwriters Laboratories)
Operating Voltage
240VAC 1 Phase
IP Rating
IP64
Depth
2.36" (59.94 mm)
Width
6.5" (165.5 mm)
Length
10.11" (256.79 mm)
Operating Temperature
-4 - 113-Degrees Fahrenheit (-20 - 45-Celcius)
