Saunum Air L 13 Package Air L Series, 13kW Sauna Heater Package

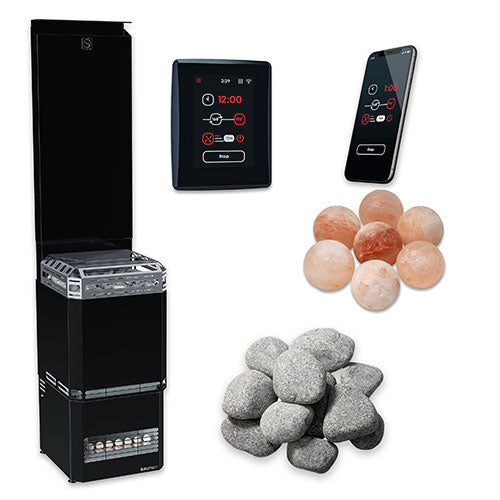

The Saunum Air L 13 Sauna Heater Package comes complete with the Air L 13 Sauna Heater, AirIQ Wi-Fi Control, Sauna Stones, and Himalayan Salt Spheres. Air L 13 is a unique heater with a sauna climate regulating system that is ideal for creating an extraordinary sauna session in a more intensively used sauna. The large stone volume and the patented air-blending system ensure exceptional steam that is soft and long, and evenly distributed throughout the sauna.

Thanks to the oxygen-rich air, breathing is easier, and the negative salt ions from the spheres are beneficial for your respiratory system and skin. This 13kW heater package is designed for sauna rooms from 424 to 565 cubic feet (CF).

• Air L 13 Sauna Heater

  Revolutionary Air Mixing Technology – No more cold feet! No other sauna heater has Saunum's patented air blending system, which mixes cooler, oxygen-rich air from the floor with hot, oxygen-poor air off the ceiling and distributes it throughout the room for a more even temperature and better breathability. Saunum ensures that heat and oxygen are more consistent from head to toe.
  Scandinavian Design – With its elegant black steel finish, Saunum combines contemporary Scandinavian design and premium-quality materials.
  Massive Stone Capacity – Stones are the heart of a Nordic sauna. Greater stone capacity results in softer, more even heat, and can produce more luxurious steam. The Air L boasts a massive 180 pound stone capacity.
  Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.
  Wi-Fi Control – The available AirIQ Wi-Fi Control allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
  Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.

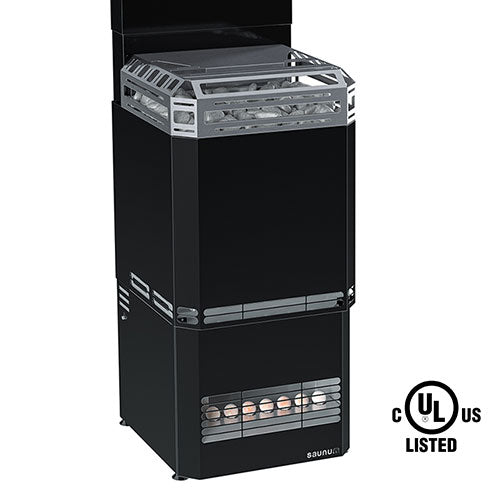

  UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
  Available Aromatherapy – Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
  For sauna rooms from 424 to 565 cu. ft.
  AirIQ Wi-Fi Control

  Temperature selection ranges from 104°F - 194°F (40°C - 90°C)
  Allows you to set the operating time of the heater: Up to 1 hour in a private sauna, up to 6 hours in a public sauna
  Allows you to select up to 3 preset sauna settings: Selectable temperature, time, climate device speed
  Classic Nordic Steam Sauna
  For temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
  Humid Steam-Rich Sauna
  For temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
  Mild, Relaxing Sauna
  For temperatures from 104°F - 131°F (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
  AirIQ Wi-Fi allows for sauna session scheduling for a specific day, time, and sauna type for the week
  Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play
  Modbus integration for smart home connection
  Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app
  Sauna is Ready
  Heating Status
  Door is Open
  Overheating Protection Applied
  Multi-language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian
  Outside sauna room installation
  Screen lock
  Child safety lock
  Temperature sensor
  Door sensor
  Sauna Stones
  High-quality olivine diabase raw stone
  Rounded, pre-washed, and ready to use
  Durable with high-heat capacity
  Stones range from 2" to 4" (5-10 cm)


• Air L 13 Sauna Heater

  13kW Sauna Heater
  Himalayan Salt Spheres (7)
  Himalayan Salt Tray
  Hot Air Intake Cap
  Hot Air Intake
  Stone Basket
  Air Outake Grille
  Cool Air Intake Valve
  Protective Grill
  Temperature Sensor
  Installation and Operation Manual
  2-Year Limited Warranty (Consumer Use)
  AirIQ Wi-Fi Control

  Soft-Touch Display Panel (Wi-Fi App-Based Updates and Operation)
  Wall Mounting Plate and Fasteners
  Power Unit
  Installation and Operation Manual
  2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
  Sauna Stones
  198 lbs of 2" to 4" (5-10 cm) Round Sauna Stones


Model
AIR L 13 PKG
Heat Equalizing System
Model
AIR L 13
Certification/Global Safety Rating
UL (Underwriters Laboratories)
Heat/Steam Equalizer Module
3-Speeds, Whisper-Quiet Operation
Ceiling Hot Air Intake
17.72" x 4" (450.09 x 101.6mm)
Cool Air Intake Type
Adjustable Valve, Side-Mounted, 12" (304.8mm) Off Floor
Cool Air Intake Size
2" x 2.75" (50.8 x 69.85mm)
Blended Air Output
4.31" x 14.13" (109.47 x 358.9mm)
Himalayan Salt and Aroma Tray Type
Removable, Slotted
Himalayan Salt and Aroma Tray Size
16.5" x 4.5" (419.1 x 111.76mm)
Sauna Heater System
Model
AIR L 13
Certification/Global Safety Rating
UL (Underwriters Laboratories)
Room Size
424-565 cu. ft. (12-16 Cubic Meters)
Wattage Rating
12900
Operating Voltage
240V
Phase
Single
Amperage
53.75
Circuit Breaker
See Installation and Operation Manual
Wire Size to Power Unit
(2) #6 + N + G
Minimum Ceiling Height
79" (2007mm)
Stone Capacity
180 lbs (80 kg)
Stone Size
2" - 4" (5-10 cm)
Heater Width
18.3" (465 mm)
Heater Depth
18.1" (460 mm)
Heater Height (Including Telescopic Air Intake)
73" - 95" (1850-2450 mm)
Heater Weight
147 lbs (67 kg)
Shipping Weight with Stones
345 lbs (156.5 kg)
Display Panel
Model
AIRIQ WI-FI
Certification/Global Safety Rating
UL (Underwriters Laboratories)
Type
Digital, Soft-Touch
Response
Tactile with Haptic Feedback Technology
Language Selection
16-Languages
Wi-Fi Capability
Wi-Fi, App-Based Updates, and Operation
Notifications
Sauna is Ready, Heater Status, Open Door, and Overheating Protection
Safety Features
Admin, Screen Lock, Door Sensor, and Overheating Protection
Color
Nordic Black
Heat Equalizing Control
3-Speed Adjustability
Width
3.3" (83.82mm)
Depth
.8" (20.32mm)
Height
4.1" (104.14mm)
IP Rating
IP20
Minimum Temperature Setting
104°F (40°C)
Maximum Temperature Setting
194°F (90°C)
Duration Timer
1 - 6 Hours
Display Panel Cable
4-Conductor Cable (150°C), 20AWG, 15' (475.2 cm)
Door Sensor and Cable Assembly (Included with Heater)
2-Conductor Cable (150°), 20AWG, 9.83' (299.62 cm)
Door Sensor Probe
1"L x .24"Diameter (25 x 6mm)
Operating Temperature Range
-4 - 145°F (-20 - 62°C)
Programmability
Weekly Scheduling with 3 Programmable Sessions
Temperature Settings
Fahrenheit or Celsius
Region Settings
North American and European Versions
Room Temperature Sensor (Included with Heater)
Pre-Mounted with Integrated Cable (150°C), 9.5' (289.56 cm)

FAbout This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.

Freight Quote Requests: Email support@wellnesspathstudio.com

Please include sauna heater model number and full shipping address.

Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs.
