Saunum Air 5 Sauna Heater Package Air Series, 5kW Sauna Heater Package

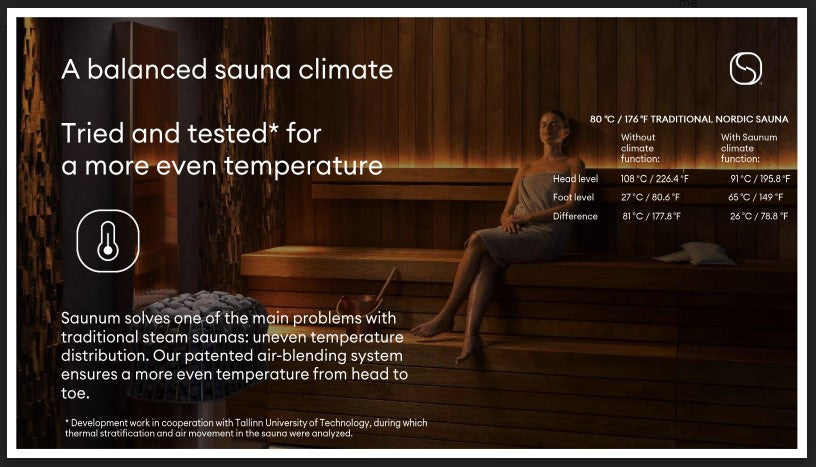

• Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen are felt head to toe.
• European Design – With an elegant black steel finish, Saunum combines Scandinavian design and quality materials.
• Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 110 pound stone capacity.
• Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits.
• For sauna rooms from 106 to 212 cu. ft.
• UL-listed for safety.

• Air 5 Sauna Heater

  Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen are felt head to toe.
  European Design – With an elegant black steel finish, Saunum combines Scandinavian design and quality materials.
  Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 110 pound stone capacity.
  Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits.
  Wi-Fi Control – The available AirIQ Wi-Fi Control allows you to activate a tailored sauna profile and have your custom sauna ready at the time that you specify on your mobile device.
  Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.
  UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.
  Available Aromatherapy – Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.
  For sauna rooms from 106 to 212 cu. ft.

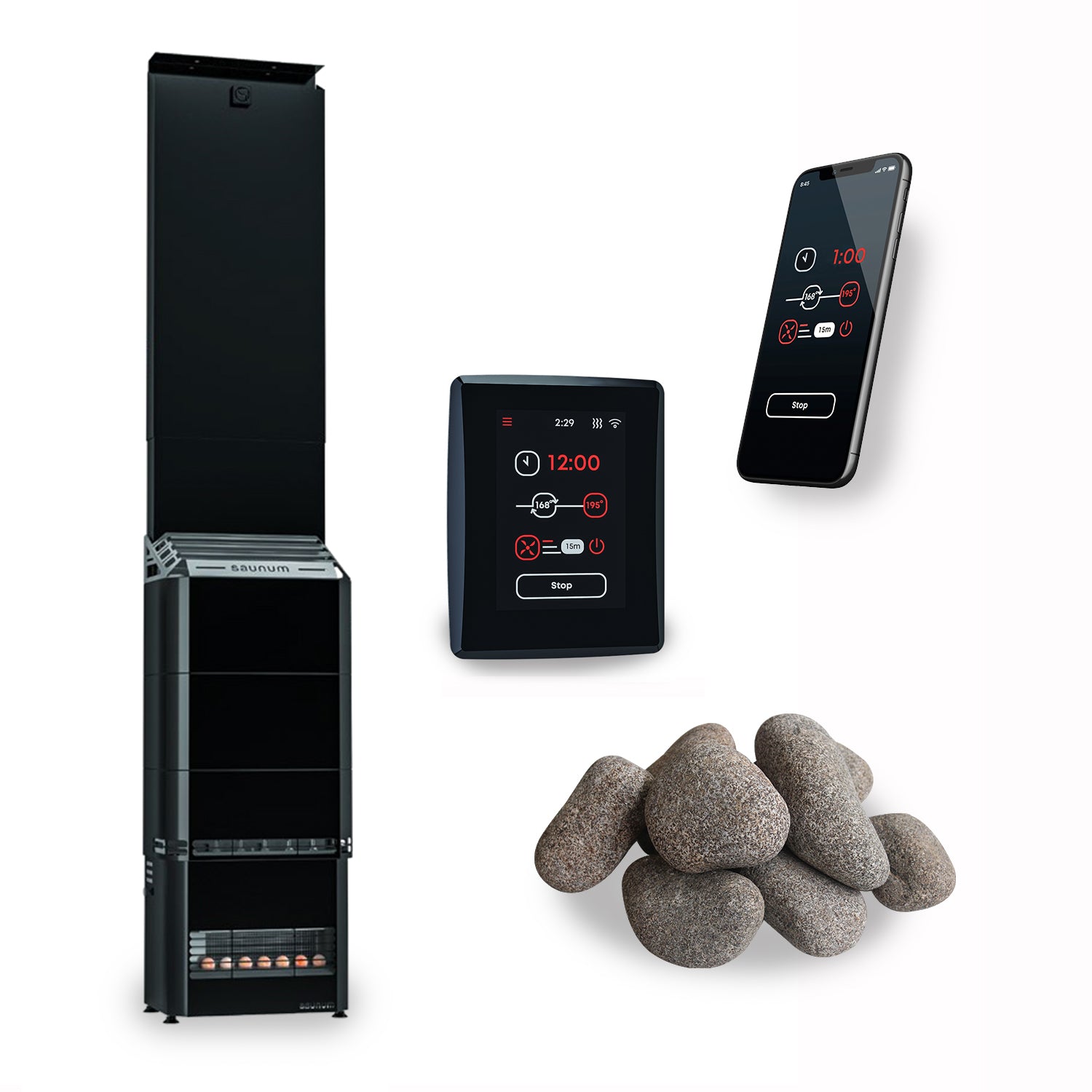

• Air 5 Sauna Heater

  Nordic Black Metal Stone Basket
  Heat Equalizing Module
  Telescopic Hot Air Intake
  Heating Element Air Tunnels (3)
  Himalayan Salt Spheres (7)
  Hot Air Intake Cap
  Stainless Steel Protective Grille
  Heating Element Electrical Cable, 5' (152.4 cm)
  Heat Equalizer Electrical Cable, 5' (152.4 cm)
  Room Temperature Sensor & Cable, 9.5' (289.56 cm)
  Door Sensor & Cable Assembly, 9.83' (299.62 cm)
  IQAir Display Panel Cable, 16' (487.68 cm)
  Quick Install Guide
  Installation and Operation Manual
  Limited Warranty
  AirIQ Wi-Fi Control

  Soft-Touch Display Panel (Wi-Fi App-Based Updates and Operation)
  Wall Mounting Plate and Fasteners
  Power Unit
  Installation and Operation Manual
  2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
  Sauna Stones
  132 lbs of 2" to 4" (5-10 cm) Round Sauna Stones

Model
AIR 5 CSB PKG
Heat Equalizing System
Model
AIR 5
Certification/Global Safety Rating
UL (Underwriters Laboratories)
Heat/Steam Equalizer Module
3-Speeds, Whisper-Quiet Operation
Ceiling Hot Air Intake
17.72" x 4" (450.09 x 101.6 mm)
Cool Air Intake Type
Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor
Cool Air Intake Size
2" x 2.75" (50.8 x 69.85 mm)
Blended Air Output
4.31" x 14.13" (109.47 x 358.90 mm)
Himalayan Salt and Aroma Tray Type
Removable, Slotted
Himalayan Salt and Aroma Tray Size
16.5" x 4.5" (419.1 x 111.76 mm)
Sauna Heater System
Model
AIR 5
Certification/Global Safety Rating
UL (Underwriters Laboratories)
Heater Body Style
Solid Steel - Nordic Black
Heating Elements
Incoloy (Stainless Steel)
Heating Element Protection
Air Tunnels, Slotted Stainless Steel, Three
Room Size
106 - 212 cu. ft. (3-6 Cubic Meters)
Wattage Rating
4950
Operating Voltage
240 VAC
Phase
Single
Amperage
20.6
Weight
147 lbs (67 kg)
Shipping Weight with Stones
279 lbs (126.6 kg)
Width
18.3" (465 mm)
Depth
12.4" (315 mm)
Height
75.4" - 95" (1915-2420 mm)
Minimum Ceiling Height
73" (1850 mm)
Stone Capacity
110 lbs (50 kg)
Stone Size
2" to 4" (5-10 cm)
Circuit Breaker
See Installation and Operation Manual
Wire Size to Power Unit
(2) #10 + N + G
Wire Size - Power Unit to Elements
7-Conductor Cable, #14AWG , 90-Degree C, 5' (152.4 cm)
Wire Size - Power Unit to Heat Equalizer
5-Conductor Cable, #18AWG, 90-Degree C, 5' (152.4 cm)
Room Temperature Sensor
Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)
Display Panel
Model
AIRIQ WI-FI
Certification/Global Safety Rating
UL (Underwriters Laboratories)
Type
Digital, Soft-Touch
Response
Tactile with Haptic Feedback Technology
Language Selection
16-Languages
Wi-Fi Capability
Wi-Fi, App-Based Updates, and Operation
Notifications
Sauna is Ready, Heater Status, Open Door, and Overheating Protection
Safety Features
Admin, Screen Lock, Door Sensor, and Overheat Protection
Color
Nordic Black
Heat Equalizing Control
3-Speed Adjustability
Width
3.3" (83.82 mm)
Depth
.8" (20.32 mm)
Height
4.1" (104.14 mm)
IP Rating
IP20
Minimum Temperature Setting
104-Degrees Fahrenheit (40-Celcius)
Maximum Temperature Setting
194-Degrees Fahrenheit (90-Celcius)
Duration Timer
1 - 6 Hours
Display Panel Cable
4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm)
Door Sensor and Cable Assembly
2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm)
Door Sensor Probe
1" Long and .24" Diameter (25 x 6 mm)
Operating Temperature Range
-4 - 145-Degrees Fahrenheit (-20 - 62 Celsius)
Programmability
Weekly Scheduling with Three Programmable Sessions
Temperature Settings
Fahrenheit or Celsius
Region Settings
North American and European Versions
Room Temperature Sensor
Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)

FAbout This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.

Freight Quote Requests: Email support@wellnesspathstudio.com

Please include sauna heater model number and full shipping address.

Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs.
