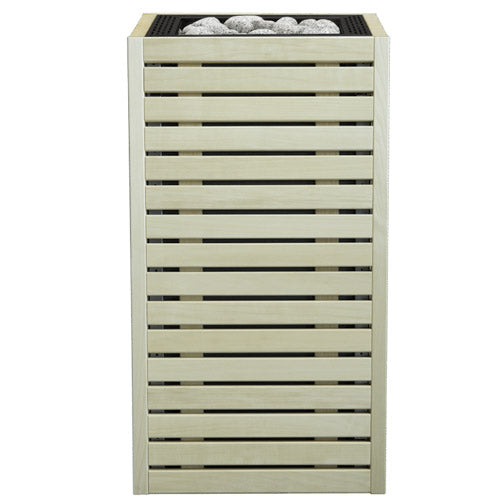

HUUM CORE Aspen CORE Series Sauna Heater, Aspen Wood Exterior, Up to 10.5kW

The HUUM CORE Sauna Heater offers flexibility and style, featuring premium Aspen wood exterior panels for an upscale, modern appearance. This elegant and powerful unit is engineered for sauna rooms up to 566 cubic feet (CF).

• 6.5kW - For sauna rooms from 177 to 318 cubic feet
• 9kW - For sauna rooms from 283 to 460 cubic feet
• 10.5kW - For sauna rooms from 354 to 566 cubic feet

Required control and sauna stones (2 boxes) sold separately.

The HUUM CORE Sauna Heater is built to match the aesthetic of your sauna room while providing exceptional performance and luxurious steam with an upscale, modern look.

Crafted in Estonia where sauna is a way of life, the HUUM CORE Aspen is constructed from stainless steel with assorted inlay finishes and Aspen pre-fitted side panels to match your saunas interior. Available in a variety of power ratings to suit a wide array of sauna sizes, the CORE thrives in tight spaces where users can benefit from the heater’s small footprint and minimal safety distances. This clever design allows endless choices for placement, including the option to embed the heater within the sauna bench.

The CORE will swiftly heat the sauna room while you confidently ladle water upon the sauna stone surface to generate an abundance of steam. Pair the unit with a UKU Control for total command of your powerful sauna heater system.

Backed by a 3-year warranty for private use, the HUUM CORE Aspen Sauna Heater is an embodiment of pure Nordic design, showcasing versatile functionality and durability while providing long-lasting relaxation.

• 240V/1PH operation
  Customizable design with choice of different inlay finishes
  Wood panels add a finished look to the heater and help prevent burn injuries
  Built to match the sauna room aesthetic
  Can be completely embedded into a sauna bench
  Direct contact between stones and heating elements
  Stainless steel, industrial quality heating elements​
  Designed, engineered, and made in Estonia
  Works with UKU controls (sold separately)
  66 pound stone capacity (required 2 boxes sold separately)
  Dimensions: 12.2"W (31 cm) x 12.2"D (31 cm) x 32.7"H (83 cm)
  Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

• Sauna Heater
  Adjustable Legs (4)
  Unfinished Metal Shields (4)
  Cover Strips (4)
  Wood Panels (4)
  Cover Strip Fastening Screws
  Wood Panel Fastening Screws
  Installation and Operation Manual
  3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

Model
CORE ASPEN 6
Room Size
177-318 cu. ft.
Wattage Rating
6500
Amperage
25
Wire Size AWG
10
Model
CORE ASPEN 9
Room Size
283-460 cu. ft.
Wattage Rating
9000
Amperage
37.5
Wire Size AWG
8
Model
CORE ASPEN 11
Room Size
354-566 cu. ft.
Wattage Rating
10500
Amperage
43.75
Wire Size AWG
8
Model
CORE ASPEN
Room Size
177-566 cu. ft.
Wattage Rating
6500-10500
Voltage
240
Phase
1
Amperage
25-43.75
Circuit Breaker
See Installation and Operation Manual
Wire Size AWG
10 or 8
Safety Listing
CE (CE Certificate)
Minimum Ceiling Height
80" (203 cm)
Safety Distance (Front to Back)
See Installation and Operation Manual
Safety Distance (Left to Right)
See Installation and Operation Manual
Stone Capacity
66 lbs (30 kg)
Stone Size
2" to 4" (5-10 cm)
Width
12.2" (31 cm)
Depth
12.2" (31 cm)
Height
32.7" (83 cm)
Weight
41.9 lbs (19 kg)
Shipping Weight with Sauna Stones
107.9 lbs (48.9 kg)
Model
CORE ASPEN PANEL
Construction Material
Aspen Wood
Width
15.1" (38.4 cm)
Depth
1.1" (2.7 cm)
Height
31.5" (80 cm)

FAbout This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.

Freight Quote Requests: Email support@wellnesspathstudio.com. Please include sauna heater model number and full shipping address.

Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs.
