Harvia WHP1500M Sauna Wood Stove Chimney Kit, 1500mm, Black Steel

The Harvia WHP1500M Chimney Kit in Black Stainless Steel is an easy-to-install stylish chimney solution. The chimney withstands extensive changes in temperature and has mainly been designed for use with wood-burning sauna stoves, smaller fireplaces, and iron stoves in detached sauna buildings.

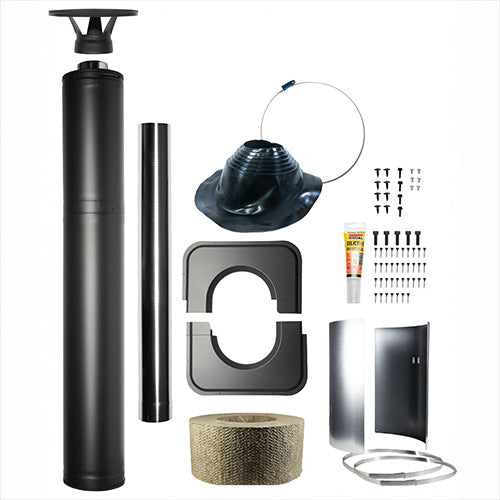

The standard delivery includes a black powder coated steel chimney and a utility box with a rain cap, a rubber rain flange and an installation set for rain flange, a stainless steel lead-through flange for the ceiling, a lead-through insulation and protector. The package also includes a non-isolated smoke pipe. Supplementary parts are available as accessories for this chimney. Thanks to an ingenious mechanism, the supplementary parts are wound together and the smoke pipes are also equipped with slots to lock them together. This prevents movement caused by temperature changes. Indoors, the chimney can be installed up to a height of 9' 8" without support and outdoors the corresponding self-supported installation height is 6' 6".

The rated maximum temperature of combus­tion gases for a furnace connected to a steel chimney is 600 ºC. The external diameter of the chimney is 8.66" and the diameter of the smoke pipe is 4.53". The safety distance to inflammable materials is 3.94". The Harvia chimney has a CE-marking, so the product complies with all international fire and operational safety requirements. The black powder coated steel chimney is soot fire proof.

•
  Black powder coated steel
  CE marking
  Mineral wool insulation material
  Mounts in vertical position
  Works with wood-heated stoves
  Works with smaller fireplaces
  Works with iron-stoves
  Able to be easily extended
  Touch protection is not needed if installed in a sauna
  Sootfire resistant
  Freeze thaw resistant
  Made in Finland
  Limited 2-year warranty (consumer use) and limited 1-year warranty (commercial use)


•
  Black powder coated chimney
  Utility box
  Non-insulated smoke pipe
  Rain cap
  Rubber rain flange
  Installation set for rain flange
  Stainless steel lead-through flange for ceiling
  Lead-through insulation and protector
  Installation manual
  2-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)


Model
WHP1500M
Material
Black powder coated steel
Non-vertical installations
Not Allowed
Product Height
59" (1500mm)
Product Diameter
8-5/8" (220mm)
Net Weight
25 lbs
