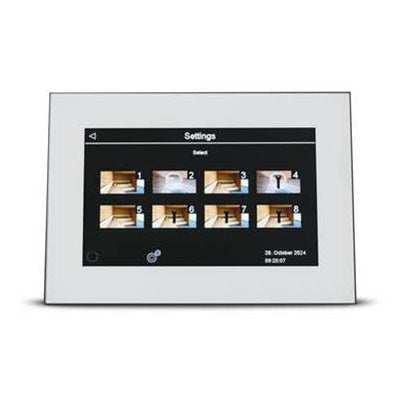

EOS Touch 3 Digital Sauna Control Unit, 7" Screen

With its precise capacitive touchscreen and intuitive user interface, the EOS Touch 3 provides fast, simple and easy access to all connected sauna cabins and their functions.

Sauna enthusiasts are greeted with a premium 7-inch full-color touchscreen display with flush-mount installation for a modern appearance. A straighforward guided setup allows navigation to be tailored to your preferences though the sleek, configurable graphic interface.

Perfect for upscale homes or commercial sauna facilities, the EOS Touch 3 is in a league of its own with the ability to control up to 8 sauna cabins through a single display (using extensions). Control the rooms in unison or individually, with precise temperature adjustment up to 194°F for optimal sauna enjoyment.

Designed for reliable long-term performance, the Touch 3 hosts many convenient user features. The control is future-safe with firmware updates that can be carried out on-site through the system interface. If a reset is ever carried out during maintenance, the system backup and restoration settings save previously created user preferences. A digital sensor system is implemented with a safety temperature limiter, preventing overheating while wellness seekers relax and rejuvenate.

Supported by a 2-year warranty, the EOS Touch 3 sauna control offers refined, universal control with dependable performance bringing sauna cabins to a new level of comfort.

• Exclusive rimless glass display with 7-inch capacitive color touchscreen for a modern flush-mount design.
  Multi-cabin control (with extensions) for up to 8 sauna rooms operating all sauna functions in unison or individually.
  Digital temperature adjustment ranging from 85° - 194° F (30 - 90°C)
  Interactive user interface with stylish icons and clear text for easy navigation supporting 20 different languages.
  Additional outputs available for control of third-party equipment such as lighting, ventilation fans and vaporizers for full cabin operation.
  Optional pin code protection for added security while servicing and fine-tuning control settings.
  Firmware can be updated on site through menu settings for long-lasting reliability.
  Power Extension Box sold separately.
  Designed, engineered and built in Germany.
  Dimensions: 8.3"W (21 cm) x 1.6"D (4.2 cm) x 5.6"H (14.2 cm)
  Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)

• Touch 3 Control Panel
  Recessed Housing for Control
  Temperature Sensor
  5m Connecting Cable with RJ10 Plug & Housing
  5m Connecting Cable with RJ14 & RJ10 Modular Plug
  Circuit Board
  2 Control Panel Removal Tools
  4 Cable Glands
  4 Wood Screws 4 x 25 mm
  2 Screws 4 x 40 mm
  Installation and Operation Manual
  2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)

Model
TOUCH 3
Display
7" Capacitive Color Touchscreen
Temperature Range (Dry Mode)
86-194°F (30 - 90°C)
Heating Time Limitation
1 Hour
Maximum Lighting Output
100W
Maximum Fan Output
150W
Digital Sensor
194°F (90°C)
Safety Temperature Limiter in Sauna
282°F (139°C)
Safety Temperature Limiter in Heater
320°F (160°C)
Housing Material
Plastic
Safety Listing
CSA (Canadian Standards Association)
Width
8.3" (21 cm)
Depth
1.6" (4.2 cm)
Height
5.6" (14.2 cm)
Mounting Depth
1.4" (3.7 cm)
Construction Material
Plastic
