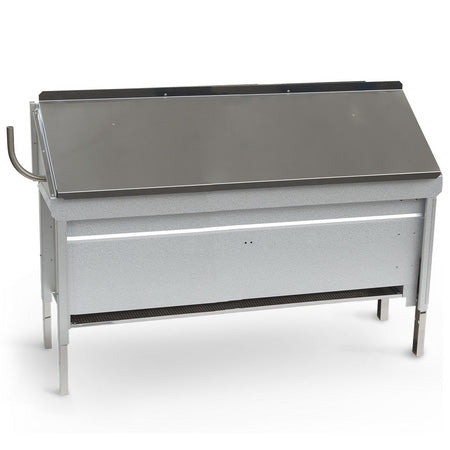

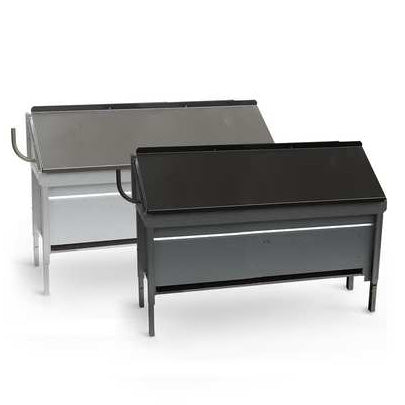

EOS Invisio Midi 240/2 Concealed Under-Bench Sauna Heater, 240V/2PH, up to 9kW

The EOS Invisio Midi electric sauna heater delivers consistent, high-quality heat and steam while its unique design keeps the unit completely hidden from view.

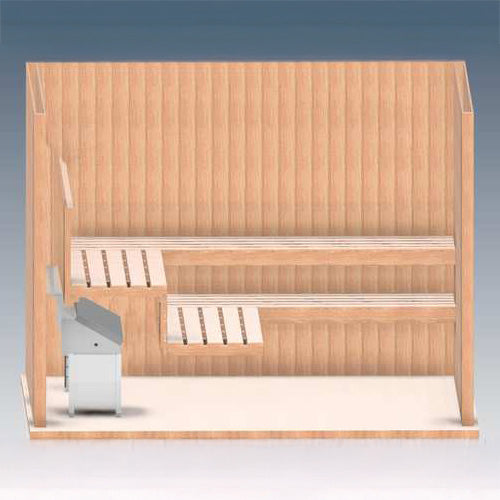

Constructed from a zinc-plated steel shell with stainless steel top, cover and feet, the Invisio Midi's distinct design offers plenty of user benefits. The heating element are configured to provide fast heat-up times so you can swiftly enjoy a luxurious sauna session. The low-profile shape allows installation beneath sauna benches, saving valuable space with only a 4-inch gap to the wall required. Wellness seekers can relax without risking contact with the hot sauna heater.

Water splashes for a steamy sauna experience are still possible using the water infusion feature. Simply pour water into the stainless-steel funnel connected to the heater, where a splash gutter distributes water across the width of the heater to create plentiful steam.

Supported by a 2-year warranty, the Invisio Midi's concealed installation and operation is ideal for wellness enthusiasts who desire a minimalist, spacious sauna interior.

This product requires other components to function and be installed successfully, Sauna Heater Controls: EOS Touch 3 or EOS EMO TEC D

• Concealed installation under the benches for high user safety and a spacious sauna interior.
  Robust zinc-plated steel shell construction with stainless steel top, cover, and adjustable feet.
  Water infusion feature still allows water splashes through a steel funnel to generate steam.
  Safety grill reliably protects against objects falling down on the heater.
  Special positioning of heating elements optimizes performance for quicker heat-up times.
  Designed, engineered and built in Germany.
  Compatible with Touch 3 & Emotec D controls (Sold Separately)
  Dimensions: 45.7"W (116 cm) x 15"D (38 cm) x 30.3"H (77 cm)
  Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)

• Invisio Midi Electric Sauna Heater
  4 Adjustable Legs
  Trough with Connection Hose
  Protective Grill
  Stainless Steel Angled Tube
  Mounting Material and Warning Plate
  Installation and Operation Manual
  2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)

Model
14-947546 / 14-948000
Room Size
213-280 cu. ft.
Wattage Rating
53 lbs (24 kg)
Amperage
15
Weight
53 lbs (24 kg)
Model
14-947547 / 14-948001
Room Size
313-494 cu. ft.
Wattage Rating
9000
Amperage
20
Weight
55 lbs (25 kg)
Model
INVISIO MIDI 240/2
Room Size
213-494 cu. ft.
Voltage
240
Phase
2
Circuit Breaker
See Installation and Operation Manual
Wire Size AWG
12
Safety Listing
CSA (Canadian Standards Association)
Minimum Ceiling Height
74.8" (190 cm)
Minimum Bench Height
63" (160 cm)
Safety Distance (Front to Back)
15.4" (39 cm)
Safety Distance (Left to Right)
50.4" (128 cm)
Stone Capacity
44 lbs (20 kg)
Stone Size
2" to 4" (5-10 cm)
Width
45.7" (116 cm)
Depth
15" (38 cm)
Height
30.3 "(77 cm)

F
About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.

Freight Quote Requests: email Support@wellnesspathstudio.com. Please include sauna heater model number and full shipping address.

Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs. Consider adding accessories to sauna heater orders to bolster margins.
