EOS Gracil W Wall-Mounted Slim-Depth Electric Sauna Heater, up to 9kW

The EOS Gracil W electric sauna heater combines refined elegance with efficient performance ideal for the optimal wellness experience.

The wall-mounted Gracil hosts a slim profile that will add a contemporary flair to perfectly compliment sauna environments. The heater is designed with a flat back and a flush-mounted terminal box, well-suited for placement in front of glass or in tight spaces that require small safety distances.

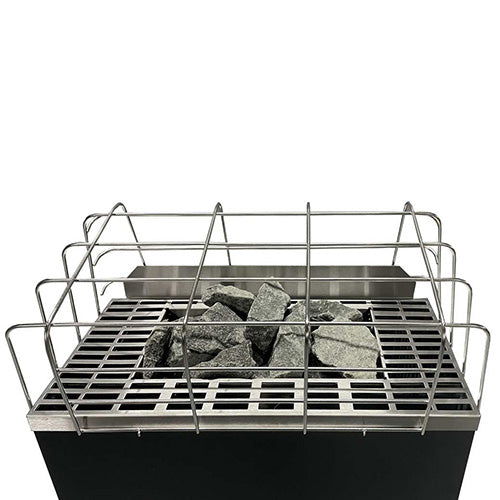

Constructed from durable stainless steel, the inner shell of the Gracil can hold 44 lbs store of sauna stones despite its shallow dimensions. Above the heater, a protective brushed stainless-steel cover acts as a safety barrier during sauna sessions. Below the heater, a collecting tray accumulates dust and debris from sauna sessions can be emptied afterwards.

Protected by a 2-year warranty, the Gracil W impresses with its artistic, space-saving design and reliable heat distribution making it perfect for private sauna escapes.

This product requires other components to function and be installed successfully, Sauna Heater Controls: EOS Touch 3 or EOS EMO TEC D

• Slim wall-mounted design ideal for small saunas where extra space is welcome.
  Steel construction throughout with an elegant stainless-steel protective stone cover.
  Sleek, straight lined body panels with flush-mounted terminal box for flexible heater placement.
  Dust and debris collecting tray located on the bottom to keep the sauna clean.
  Designed, engineered and built in Germany.
  Compatible with Touch 3 & Emotec D controls (Sold Separately)
  Dimensions: 19.9"W (50.5 cm) x 9.8"D (25 cm) x 29.9"H (76 cm)
  Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)

• Gracil W Electric Sauna Heater
  Diabase Sauna Stones
  Protective Grill
  4 Particle Board Screws 5 x 35 mm
  Wall Bracket
  Lock Screw
  Installation and Operation Manual
  2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)

Model
14-947537 / 14-947991
Room Size
213-300 cu. ft.
Wattage Rating
6000
Voltage
208
Phase
3
Amperage
20
Wire Size AWG
12
Weight
45.2 lbs (20.5 kg)
Model
14-947540 / 14-947994
Room Size
213-300 cu. ft.
Wattage Rating
6000
Voltage
240
Phase
2
Amperage
35
Wire Size AWG
10
Weight
45.2 lbs (20.5 kg)
Model
14-947538 / 14-947992
Room Size
280-420 cu. ft.
Wattage Rating
7500
Voltage
208
Phase
3
Amperage
25
Wire Size AWG
12
Weight
46.3 lbs (21 kg)
Model
14-947541 / 14-947995
Room Size
280-420 cu. ft.
Wattage Rating
7500
Voltage
240
Phase
2
Amperage
40
Wire Size AWG
10
Weight
46.3 lbs (21 kg)
Model
14-947539 / 14-947993
Room Size
313-494 cu. ft.
Wattage Rating
9000
Voltage
208
Phase
3
Amperage
35
Wire Size AWG
10
Weight
47.4 lbs (21.5 kg)
Model
14-947542 / 14-947996
Room Size
313-494 cu. ft.
Wattage Rating
9000
Voltage
240
Phase
2
Amperage
50
Wire Size AWG
8
Weight
47.4 lbs (21.5 kg)
Model
GRACIL W
Room Size
213-494 cu. ft.
Circuit Breaker
See Installation and Operation Manual
Safety Listing
CSA (Canadian Standards Association)
Minimum Ceiling Height
74.8" (190 cm)
Safety Distance (Front to Back)
13.2" (33.5 cm)
Safety Distance (Left to Right)
24.6" (62.5 cm)
Stone Capacity
44 lbs (20 kg)
Stone Size
2" to 4" (5-10 cm)
Width
19.9" (50.5 cm)
Depth
10.8" (27.5 cm)
Height
29.1" (74 cm)

F
About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.

Freight Quote Requests: email Support@wellnesspathstudio.com. Please include sauna heater model number and full shipping address.

Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs. Consider adding accessories to sauna heater orders to bolster margins.
