EOS Gracil Freestanding Slim-Depth Electric Sauna Heater, up to 9kW

The EOS Gracil electric sauna heater combines refined elegance with efficient performance, ideal for optimal enjoyment and an exceptional sauna experience.

The freestanding Gracil features a modern slim, geometric profile that will add a contemporary flair to your sauna environment. It is designed with a flat back and a flush-mounted terminal box, so the heater can be placed in front of glass or in tight spaces that require small safety distances.

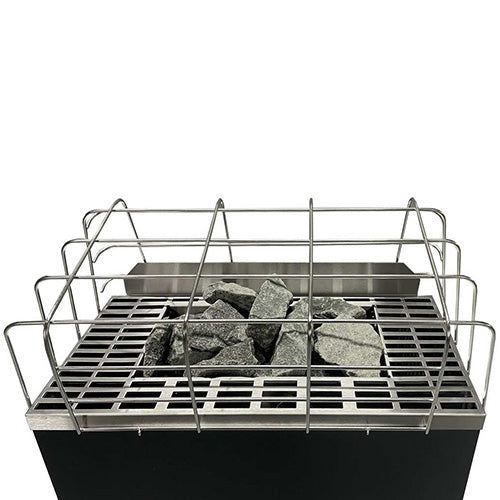

Constructed from durable stainless steel, the inner shell of the Gracil contains 44 lbs of sauna stones despite its shallow dimensions. Above the heater a brushed stainless-steel cover acts as a safety barrier during sauna sessions, with a collecting tray below accumulating dust and debris to keep your cabin spotless.

Supported by a 2-year warranty, the Gracil impresses with its artistic space-saving design and reliable heat distribution making it perfect for private sauna escapes.

This product requires other components to function and be installed successfully, Sauna Heater Controls: EOS Touch 3 or EOS EMO TEC D

• 6kW - For sauna rooms from 213 to 300 cubic feet
• 7.5kW - For sauna rooms from 280 to 420 cubic feet
• 9kW - For sauna rooms from 313 to 494 cubic feet

• Slim freestanding design ideal for small saunas where extra space is welcome.
  Steel construction throughout with an elegant stainless-steel protective stone cover.
  Sleek, straight lined body panels with flush-mounted terminal box for flexible heater placement.
  Removable dust and debris collecting tray located below the heater to keep the sauna clean.
  Designed, engineered and built in Germany.
  Compatible with Touch 3 & Emotec D controls (Sold Separately)
  Dimensions: 19.9"W (50.5 cm) x 9.8"D (25 cm) x 29.9"H (76 cm)
  Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)

• Gracil Electric Sauna Heater
  Diabase Sauna Stones
  Protective Grill
  2 Mounting Brackets
  4 Particle Board Screws 5 x 35mm
  Installation and Operation Manual
  2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)

Model
14-947531 / 14-947985
Room Size
213-300 cu. ft.
Wattage Rating
6000
Voltage
208
Phase
3
Amperage
20
Wire Size AWG
12
Weight
45.2 lbs (20.5 kg)
Model
14-947534 / 14-947988
Room Size
213-300 cu. ft.
Wattage Rating
6000
Voltage
240
Phase
2
Amperage
35
Wire Size AWG
10
Weight
45.2 lbs (20.5 kg)
Model
14-947532 / 14-947986
Room Size
280-420 cu. ft.
Wattage Rating
7500
Voltage
208
Phase
3
Amperage
25
Wire Size AWG
12
Weight
46.3 lbs (21 kg)
Model
14-947535 / 14-947989
Room Size
280-420 cu. ft.
Wattage Rating
7500
Voltage
240
Phase
2
Amperage
40
Wire Size AWG
10
Weight
46.3 lbs (21 kg)
Model
14-947533 / 14-947987
Room Size
313-494 cu. ft.
Wattage Rating
9000
Voltage
208
Phase
3
Amperage
35
Wire Size AWG
10
Weight
47.4 lbs (21.5 kg)
Model
14-947536 / 14-947990
Room Size
313-494 cu. ft.
Wattage Rating
9000
Voltage
240
Phase
2
Amperage
50
Wire Size AWG
8
Weight
47.4 lbs (21.5 kg)
Model
GRACIL
Room Size
213-494 cu. ft.
Depth
9.8" (25 cm)
Height
29.9" (76 cm)
Width
19.9" (50.5 cm)
Stone Size
2" to 4" (5-10 cm)
Circuit Breaker
See Installation and Operation Manual
Stone Capacity
33 lbs (15 kg)
Safety Listing
CSA (Canadian Standards Association)
Minimum Ceiling Height
74.8" (190 cm)
Safety Distance (Front to Back)
14.6" (37 cm)
Safety Distance (Left to Right)
24.6" (62.5 cm)
